Table OCR Benchmark
Benchmark comparing Aspose.OCR, Leadtools.OCR, and IronOCR table recognition capabilities on 123 table images. Results show average structure detection and text recognition accuracy.
Benchmark Overview
This benchmark compares Aspose.OCR, Leadtools.OCR, and IronOCR on 123 table images. All metrics shown are average values across the dataset.
Summary Results (Average Across 123 Images)
Metric | Aspose.OCR | Leadtools.OCR | IronOCR |
|---|---|---|---|
Structure Detection Accuracy | 82.00% | 2.40% | 19.40% |
Text Recognition Accuracy | 79.10% | 63.90% | 42.10% |
Detailed Results
Engine | Expected Rows/Columns | Detected Rows | Detected Columns | Structure Accuracy | Correct Cells | Text Accuracy |
|---|---|---|---|---|---|---|
Aspose | 19 × 7 | 18 | 7 | 82% | 59/78 | 79% |
Leadtools | 19 × 7 | 668 | 2 | 2.40% | 40/78 | 64% |
IronOCR | 19 × 7 | 9 | 2 | 19.40% | 2/78 | 42% |

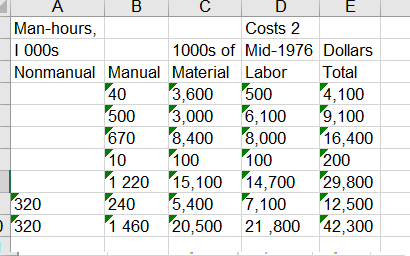

Example: Table Recognition Comparison
This example demonstrates how different OCR engines recognize the same table structure.

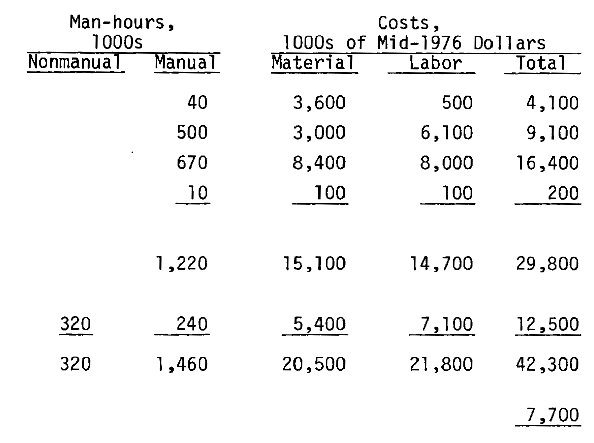

| Original Table | ||||||||
|---|---|---|---|---|---|---|---|---|
Original table structure![]() | ||||||||
|
Easy to use Aspose.OCR API
Aspose OCR API simplifies text extraction by handling image analysis and processing automatically, letting users focus on their core tasks—just provide an image and and leave the rest to the API.
Convert image to text
/** Initialize recognition API */
AsposeOcr api = new AsposeOcr();
/** Provide the image for recognition */
OcrInput source = new OcrInput(InputType.SingleImage);
source.Add("image.png");
/** Recognize and output results */
List<RecognitionResult> results = api.Recognize(source);
Console.WriteLine(results[0].RecognitionText);
